Overview:

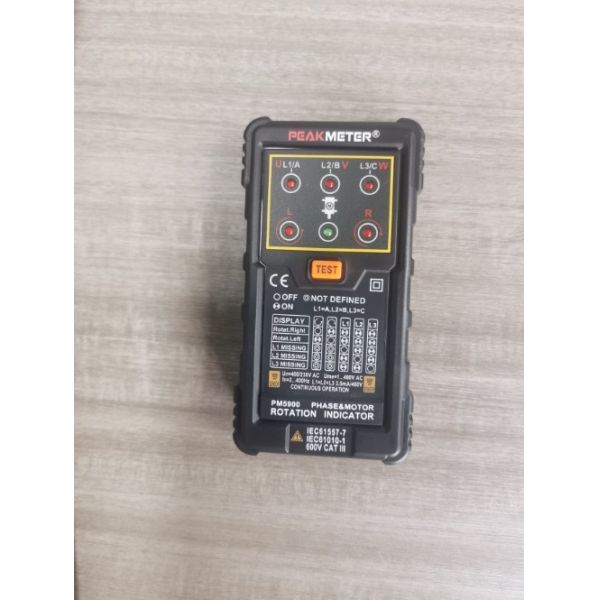

MS5900 Motor and Phase Rotation Indicator is used to test magnetic field direction of the three-phase system, phase rotation, motor rotation direction.
Without a need to link testing line, the motor rotation direction can be decided by placing this indicator above the motor and aligning it with a motor drive shaft.
It is durable, reliable and light-weight handheld device, which is a necessary tool for those who often install, repair or maintain the three-phase system or motor.
Specifications
Maximum Operating Voltage(Ume):400V AC For All Ranges

Determine Rotary Field Direction
Nominal Voltage Rotary Direction:1 to 400V AC
Nominal Voltage Phase Indication:120 to 400V AC
Frequency Range(fn):2 to 400Hz
Test Currents (In Per Phase):Less Than 3.5mA
Non-Contact Rotary Field Indication
Frequency Range(fn):2 to 100Hz
Determine the Motor Connection
Nominal Test Voltage(Ume):1 to 400V AC
Nominal Test Currents(In Per Phase):Less than 3.5mA
Frequency Range(fn):2 to 400Hz

Environmental
Operating Temperature:0℃ to 40℃
Operating Altitude:2000m
Pollution Degree:2Mechanical
Power supply: 3 x 1.5V AA ( not included )
