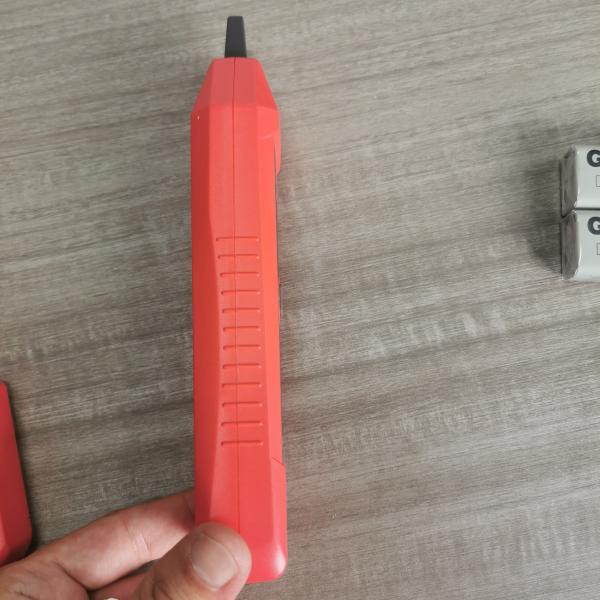

    UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester

    Ask Lasest Price
    Brand Name : UNI-T
    Model Number : UT682D
    Certification : -
    Price : USD125/PC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000
    Delivery Time : in stock
    • Product Details
    • Company Profile

    UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester

    Specifications of UT682 Series Wire Tracker/Tone and Probe

    SpecificationsRangeUT682UT682D
    Wire tracking featuresWire typesLAN cabletelephone linecoaxial cableelectric wireTelephone linetwisted-
    pairelectric wire
    Indication light for signal strength
    Live switchboard wire tracing
    Switchboard wire tracing distance≥100m
    Telephone lines tracking distance≥3000m≥3000m
    Unshielded cables tracking distance≥320m
    Shielded cables tracking distance≥320m
    Open and short circuit test
    Polarity indication for
    telelphone lines
    DCV function, range:
    ±(5V~52V)
    Telephone lines and LAN cables distinctionJacks distinction
    Broken wire tracking
    Transmitter output voltage≥12V peak-peak8V DC with a new battery
    Transmitter low battery indication6.6V±0.5V
    Transmitter power supply9V battery
    Max transmitter working current25mA
    Headphone jack for receiver
    Receiver power supply9V battery
    Max receiver standby current~10mA
    Max receiver operating current<40mA (AC, RMS)
    Wire alignmentLine sequence measurement9 LEDs (LED1~LED8, LED_G)
    Line sequence measuring speedFast and slow selectable
    LAN cable: shielded/unshielded indication
    Transmitter input
    voltage protection
    52V DC60V DC
    Operating environmentOperating temperature: 0~40℃; Storage temperature: -10~50℃
    Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
    General Characterisitics
    Product colorRed and grey
    Product net weightUT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g
    Product sizeUT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm
    UT682D: Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm
    Standard accessories9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682)
    Standard individual packingBlister (UT682), carrying bag (UT682), gift box (UT682D), English manual
    Standard quantity per cartonUT682: 24pcs; UT682D: 20pcs
    Standard carton measurementUT682: 575mm x 310mm x 430mm; UT682: 425mm x 265mm x 260mm
    Standard carton gross weightUT682: 12.3kg; UT682D: 7.5kgUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable TesterUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable TesterUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable TesterUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable TesterUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable TesterUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
