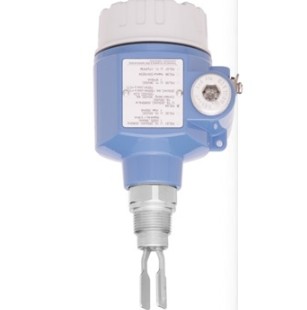

Endress+Hauser FTC260-BA4J1 Capacitance level switch Minicap, Alu IP66, M20, ATEX II 1/2D, EN10226 R1, PPS

• Characteristic / Application

  Compact rod probe with build-up compensation
  easy start up

• Specialities

  FDA-listed material

• Supply / Communication

  10,8 ... 45V DC, DC-PNP 3-wire
  20 ... 253V AC, or
  20 ... 55V DC, Relay output

• Ambient temperature

  -40°C...+70°C
  (-40°F...+158°F)

• Process temperature

  -40°C ...+120°C
  (-40°F ...+248°F)

• Process pressure / max. overpressure limit

  -1 ... 25 bar
  (-14.5 ... 360 psi)

• Main wetted parts

  PPS = Polyphenylene sulphide
  (glass fibre content approx. 40%)

• Process connection

  R1"
  NPT1"

• Sensor length

  140 mm (5.51")

• Communication

  PNP transistor output
  Relay output (potential-free
  change-over contact / SPDT)

• Certificates / Approvals

  ATEX , IEC Ex, FM, CSA, NEPSI, UK Ex

• Options

  Aluminium Housing

• Application limits

  Solids, grain size max. 30 mm (1.2"),
  DK min 1,6
  Flexural strength 1400 N (at probe tip)
