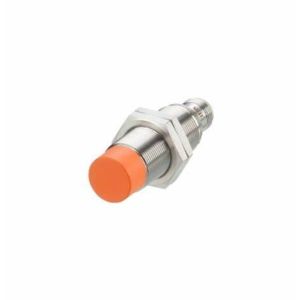

    Buy cheap Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication from wholesalers

    Buy cheap Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication from wholesalers
    • Buy cheap Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication from wholesalers
    • Buy cheap Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication from wholesalers
    • Buy cheap Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication from wholesalers
    • Buy cheap Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication from wholesalers

    Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication

    Ask Lasest Price
    Brand Name : IFM
    Model Number : IG6215
    Certification : CE
    Price : 65
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500pc
    Delivery Time : 6-8weeks
    • Product Details
    • Company Profile

    Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication

    Product characteristics
    Electrical designPNP/NPN; (configurable)
    Output functionnormally open / closed; (configurable)
    Communication interfaceIO-Link
    HousingThreaded type
    Dimensions [mm]M18 x 1 / L = 60
    Electrical data
    Operating voltage [V]10...30 DC
    Current consumption [mA]< 15
    Protection classIII
    Reverse polarity protectionyes
    Outputs
    Electrical designPNP/NPN; (configurable)
    Output functionnormally open / closed; (configurable)
    Max. voltage drop switching output DC [V]2.5
    Permanent current rating of switching output DC [mA]100
    Switching frequency DC [Hz]300
    Notes on switching frequency [Hz]
    IO-Link mode: 100
    Short-circuit protectionyes
    Overload protectionyes
    Monitoring range
    Switch point IO-Link [mm]2.4...12.1; (configurable)
    Measuring range IO-Link [mm]1.3...13
    Accuracy / deviations
    Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4
    Hysteresis [% of Sr]3...15
    Note on hysteresis
    configurable
    Linearity error IO-Link [%]± 2; (of the final value of the measuring range)
    Repeatability analog output [%]± 1; (of the final value of the measuring range)
    Temperature coefficient [%/K vom MEW]± 0,3
    Temperature drift± 10 %; (of the final value of the measuring range)
    Interfaces
    Communication interfaceIO-Link
    Transmission typeCOM2 (38,4 kBaud)
    IO-Link revision1.1
    SDCI standardIEC 61131-9
    ProfilesSmart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel
    SIO modeyes
    Required master port classA
    Min. process cycle time [ms]3.2
    IO-Link process data (cyclical)
    Functionbit length
    process value16
    device status4
    binary switching information2
    IO-Link functions (acyclical)switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag
    Supported DeviceIDs
    Type of operationDeviceID
    default1344
    Note
    For further information please see the IODD PDF file at "Downloads"
    Operating conditions
    Ambient temperature [°C]-40...85
    ProtectionIP 65; IP 66; IP 67; IP 68; IP 69
