Testo 835-H1 - Infrared thermometer with humidity module Measuring
range -50 ~ +600 °C
Introduction
The non-contact temperature and humidity infrared thermometer has a
built-in humidity template, which is easy and comfortable to use,
can store 200 sets of data, and measure remotely with 50:1 optical
resolution.
Measure the temperature and humidity of surfaces such as walls,
monitor air conditioning and ventilation systems, maintain
industrial systems, or perform quality control of industrial
products.
Specification
| size | 193 x 166 x 63 mm |
| operating temperature | -20 ~ +50 °C |
| shell | ABS + PC |
| laser spot | switch |
| backlight | 30 sec |
| Storage capacity | 200 measurements |
Features
The testo 835-H1 infrared thermometer achieves:
- Measure surface temperature, relative humidity, detect dew point
and surface humidity
- Detecting critical points of mildew in building structures
- Perform measurements on small, in-service or hard-to-reach
locations
Performance characteristic
- 1. 4-point laser aiming to locate the measurement area to avoid
wrong measurement
- 2. 50:1 optical resolution for safer remote surface temperature
measurement (eg: distance 5m = 10 cm measuring point)
- 3. Adjustable emissivity for consistently reliable measurement
results on a wide variety of surfaces
- 4. Connectable external temperature probes: for very low emissivity
surface contact temperature measurements - connect the optional
temperature probes you need
- 5. The design of buttons and joysticks provides more friendly and
simple operation
- 6. Create measurement locations, can store 200 sets of data
- 7. Customize personalized limit, sound and light alarm
- 8. Display with backlight
Distance coefficient ratio (distance: range of measurement)
APP Story
With the testo 835-H1 it is possible to locate thermal bridges
(locations on walls, floors and ceilings that are hotter than
nearby areas, mainly due to structural defects) for the early
detection or identification of structural defects, energy losses,
and mold growth Dangerous location.
Advantages of testo 835-H1:
Quickly identify thermal bridges by scanning walls (even over long
distances)
- Analyze the condition of interiors and walls by measuring dew
point, dew point distance, and aw value (surface moisture)
- The data is saved so that it can be recorded and compared with
previous measurement data to analyze whether the correct action was
taken.

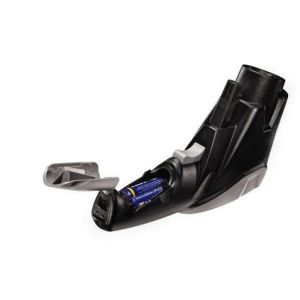

Replace Battery
1. Open the battery compartment
2. Remove the used battery and insert a new battery a) Pay
attention to polarity!
3. Cover the battery compartment again
