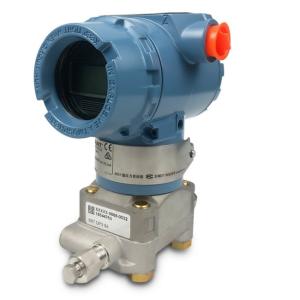

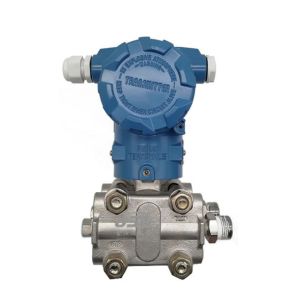

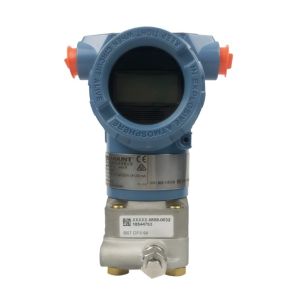

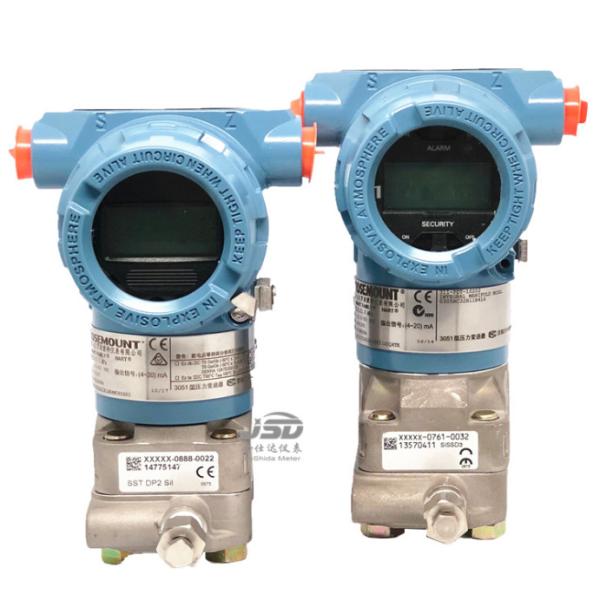

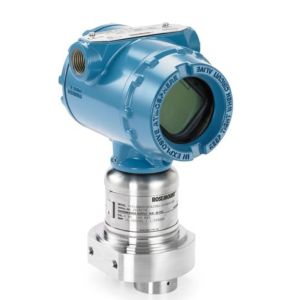

Original Emerson 3051 pressure Transmitter Coplanar platform
pressure Transmitter differential
product presentation
Confidently measure pressure and level with the Rosemount 3051
In-Line Pressure Transmitter. Engineered for 10-year installed
stability and 0.04% of span accuracy, this industry-leading
pressure transmitter provides you with the information necessary to
run, control and monitor processes. The Rosemount 3051 includes
features that meet your pressure measurement needs, such as a wide
rangedown and Power Advisory diagnostics and is suitable for safety
installations.
Product Parameter
| Brand Name | Brand Name |
| Model Number | 3051 |
| Rangedown | Up to 150:1 |
| Warranty | Up to 5-year limited warranty |
| Process Wetted Material | 316L SST, Alloy C-276 |
| Communication Protocol | Wireless HART |
| Output | Differential pressure, scaled variable |
| Measurement Range | Up to 2000 psi (137,89 bar) differential |
Specifications
Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, WirelessHART®, FOUNDATION
fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range Up to 20000 psig (1378,95 bar) Gage, Up to 20000
psia (1378,95 bar) Absolute
Process Wetted Material 316L SST, Alloy C-276
Diagnostics Basic Diagnostics, Loop Integrity
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an
independent 3rd party, NSF, NACE®, hazardous location, see full
specs for complete list of certifications.
Features
Over 10 million Rosemount 3051 devices installed globally,
providing reliable pressure readings in harsh environments
In-line gage and absolute pressure measurements support up to
20,000 psi (1378,95 bar) for pressure and level solutions
10-year installed stability and 150:1 rangedown produce reliable
measurements and wide application flexibility
Supports common protocols for integration in many host environments
across many industries
Wide range of manifolds and remote seals are available –
factory-assembled and leak-tested for easy installation
Local Operator Interface (LOI) enables quick commissioning and
provides easy access to process and device information
SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use
certificate of FMEDA data for safety installations
Loop Integrity diagnostics detect electrical loop issues for
reduced downtime.
The Rosemount 3051 Coplanar pressure transmitter offers a range of
features and design benefits. This series of pressure transmitters
has been installed many times in the field, providing an integrated
solution for pressure, level and flow measurement. The common plane
flange of the transmitter brings the flexibility of installation
and application. It has the ability of direct process installation,
making the installation relatively simple and economical.
About our company
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Southeast
Asia(40.00%),Domestic Market(35.00%),Africa(15.00%),Mid
East(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Differential pressure gauge,Red oil differential pressure
gauge,Pressure differential pressure transmitter,Level
controller,Float switch
4. why should you buy from us not from other suppliers?
We have excellent and experienced foreign trade team and other
teams to provide you with the best and professional services. Our
products are sold all over the world as best-selling products and
high reputation products. We aim to maintain a high standard
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
